Pneumatski udarači

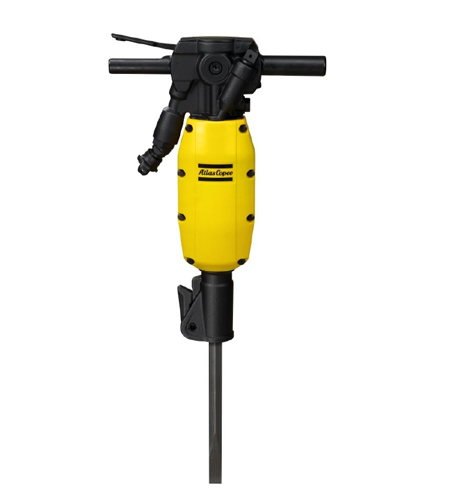

TEX 140PS: Pneumatic breaker (Hex 22x82,5) (7/8x3 1/4)
| Technical Specifications | |
|---|---|
| Breaker type | Standard |
| Breaker Version | Silenced |
| Shank Size (mm) | Hex 22x82.5 |
| Shank Size (inch) | Hex 7/8x3 1/4 |
| Weight | 15.5 kg |
| Length | 590 mm |
| Air consumption | 25 l/s |
| Impact Rate | 1530 blows/min |
| Vibration level 3 axes (ISO 28927-10)* | 15.2 m/s² |
| Sound power level guaranteed, Lw (2000/14/EC)* | 104 dB(A) |
| Sound pressure level (ISO 11203)** Lp, r=1m | 91 dB(A) |
Za više informacija posetite sajt proizvođača
TEX 180PS: Pneumatic breaker (Hex 25x108) (1x4 1/4)
| Technical Specifications | |
|---|---|
| Hammer type | Chipping hammer |
| Hammer version | Vibro-reduced |
| Tool retainer | cap |
| Weight | 6.5 kg |
| Length | 450 mm |
| Air consumption | 10 l/s |
| Impact Rate | 2640 blows/min |
| Vibration level 3 axes (ISO 28927-10)* | 2.4 m/s² |
| Sound power level guaranteed, Lw (2000/14/EC)** | 105 dB(A) |
| Sound pressure level (ISO 11203)** Lp, r=1m | 87 dB(A) |
| Shank Size (mm) | Hex 19x50 |
| Shank Size (inch) | Hex 3/4x2 |
Za više informacija posetite sajt proizvođača
TEX 280PE: Pneumatic breaker (Hex 28x160) (1 1/8x6)
| Technical Specifications | |
|---|---|
| Breaker type | Vibro-reduced |
| Breaker Version | Silenced |
| Shank Size (mm) | Hex 28x160 |
| Shank Size (inch) | Hex 1 1/8x6 |
| Weight | 31.5 kg |
| Length | 690 mm |
| Air consumption | 32 l/s |
| Impact Rate | 1230 blows/min |
| Vibration level 3 axes (ISO 28927-10)* | 4.8 m/s² |
| Sound power level guaranteed, Lw (2000/14/EC)* | 105 dB(A) |
| Sound pressure level (ISO 11203)** Lp, r=1m | 92 dB(A) |
Za više informacija posetite sajt proizvođača

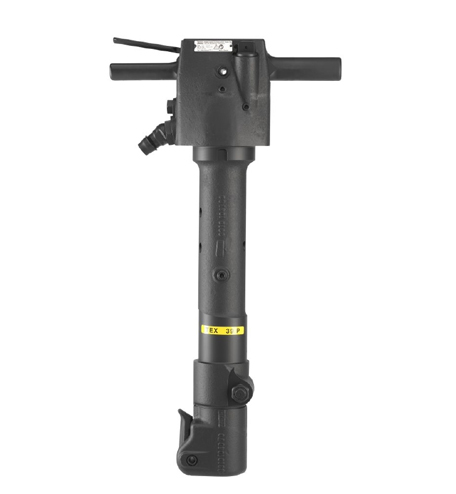

TEX 39P: Pneumatic breaker (Hex 32x160) (1 1/4x6).Not sold for use within EEA (European Economic Area).
| Technical Specifications | |
|---|---|
| Breaker type | Standard |
| Breaker Version | Without silencer |
| Shank Size (mm) | Hex 32x160 |
| Shank Size (inch) | Hex 1 1/4x6 |
| Weight | 37 kg |
| Length | 750 mm |
| Air consumption | 40 l/s |
| Impact Rate | 1110 blows/min |
Za više informacija posetite sajt proizvođača

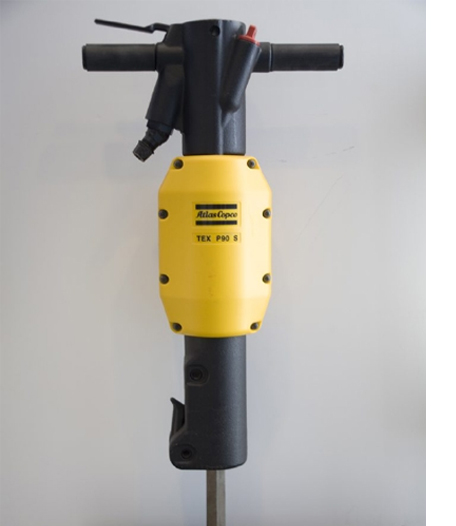

TEX P90S: Pneumatic breaker (Hex 32x160) (1 1/4x6)
| Technical Specifications | |
|---|---|
| Breaker type | Standard |
| Breaker Version | Silenced |
| Shank Size (mm) | Hex 32x160 |
| Shank Size (inch) | Hex 1 1/4x6 |
| Weight | 43 kg |
| Length | 710 mm |
| Air consumption | 40 l/s |
| Impact Rate | 1260 blows/min |
| Vibration level 3 axes (ISO 28927-10)* | 15.3 m/s² |
| Sound power level guaranteed, Lw (2000/14/EC)* | 111 dB(A) |
| Sound pressure level (ISO 11203)** Lp, r=1m | 99 dB(A) |
Za više informacija posetite sajt proizvođača
