Atlas Copco > Proizvodi > Vibro igle > Mehaničke igle
Mehaničke igle
AA27: Mechanical pendulum poker with high centrifugal force
| Technical Specifications | |
|---|---|
| Tube diameter | 25 mm |
| Hose length | 6 m |
| Frequency in concrete (vpm) | 12000 |
| Centrifugual Force, N | 570 |
| Tube length | 334 mm |
| Weight | 10 kg |
| Amplitude | 0.3 mm |
| Vibration value | 2.46 m/s² |
| Noise level | 69 dB(A) |
Za više informacija posetite sajt proizvođača
AT29: Mechanical poker for the high frequency AME1500 system
| Technical Specifications | |
|---|---|
| Tube diameter | 29 mm |
| Frequency in concrete (vpm) | 12000 |
| Centrifugual Force, N | 950 |
| Tube length | 332 mm |
| Weight | 1.3 kg |
| Amplitude | 0.8 mm |
| Vibration value | 5.5 m/s² |
| Noise level | 75 dB(A) |
Za više informacija posetite sajt proizvođača

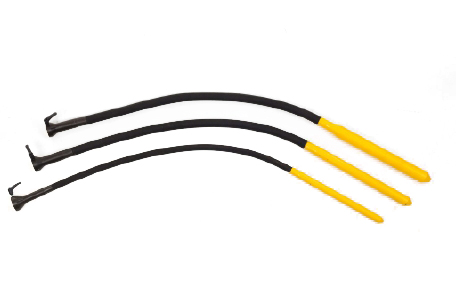

HA 25/1: Mechanical poker for the high frequency AME600 system
| Technical Specifications | |
|---|---|
| Vibration value | 1.7 m/s² |
| Tube diameter | 25 mm |
| Tube length | 295 mm |
| Flexible shaft | 1 m |
| Total weight | 2.8 kg |
| Frequency (vpm) | 12000 |
Za više informacija posetite sajt proizvođača
Superflex 10: Flexible shafts for the high frequency AME1500 system
| Technical Specifications | |
|---|---|
| Length | 1 m |
Za više informacija posetite sajt proizvođača
