Hidraulične stanice - električni pogon

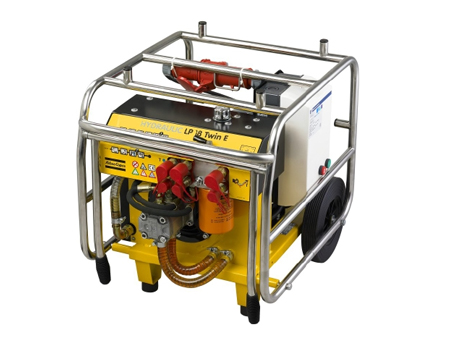

LP 18 Twin E
| Technical Specifications | |
|---|---|
| Oil flow | 20 - 40 l/min |
| Weight (incl oil) | 123 kg |
| Length | 745 mm |
| Width | 605 mm |
| Height | 705 mm |
| Max pressure | 155 bar |
| Hose included | NO |
| Sound power level guaranteed, Lw (2000/14/EC)* | 101 dB(A) |
| Sound pressure level (ISO 11203)* Lp, r=1m | 86 dB(A) |
| EHTMA class | C/E |
| Engine | |
| Power | 11 kW |
| Voltage | 3x400 |
| Ampere | 32 |

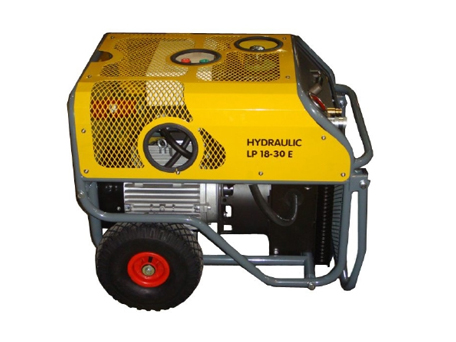

LP 18-30 E
| Technical Specifications | |
|---|---|
| Oil flow | 28 - 30 l/min |
| Weight (incl oil) | 130 kg |
| Length | 815 mm |
| Width | 605 mm |
| Height | 690 mm |
| Max pressure | 172 bar |
| Hose included | NO |
| Sound power level guaranteed, Lw (2000/14/EC)* | 101 dB(A) |
| Sound pressure level (ISO 11203)* Lp, r=1m | 86 dB(A) |
| EHTMA class | D |
| Engine | |
| Power | 11 kW |
| Voltage | 3x400 |
| Ampere | 32 |

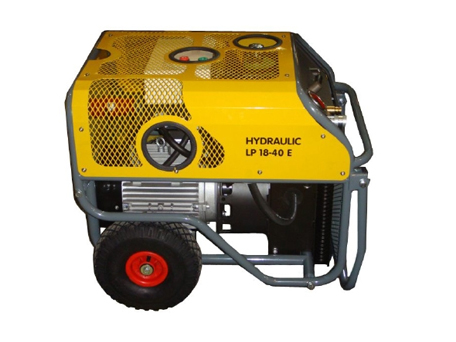

LP 18-40 E
| Technical Specifications | |
|---|---|
| Oil flow | 38 - 40 l/min |
| Weight (incl oil) | 130 kg |
| Length | 815 mm |
| Width | 605 mm |
| Height | 690 mm |
| Max pressure | 155 bar |
| Hose included | NO |
| Sound power level guaranteed, Lw (2000/14/EC)* | 101 dB(A) |
| Sound pressure level (ISO 11203)* Lp, r=1m | 86 dB(A) |
| EHTMA class | E |
| Engine | |
| Power | 11 kW |
| Voltage | 3x400 |
| Ampere | 32 |

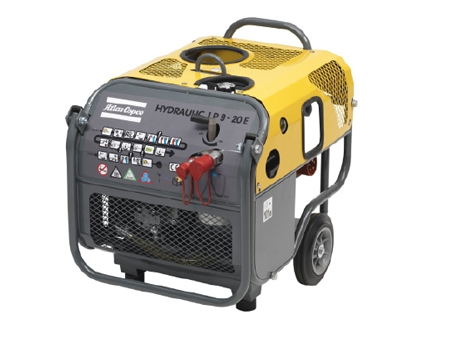

LP 9-20 E
| Technical Specifications | |
|---|---|
| Oil flow | 20 l/min |
| Weight (incl oil) | 68 kg |
| Length | 605 mm |
| Width | 505 mm |
| Height | 690 mm |
| Max pressure | 150 bar |
| Hose included | NO |
| Sound power level guaranteed, Lw (2000/14/EC)* | 96 dB(A) |
| Sound pressure level (ISO 11203)* Lp, r=1m | 82 dB(A) |
| EHTMA class | C |
| Engine | |
| Power | 5.5 kW |
| Voltage | 3x400 |
| Ampere | 16 |

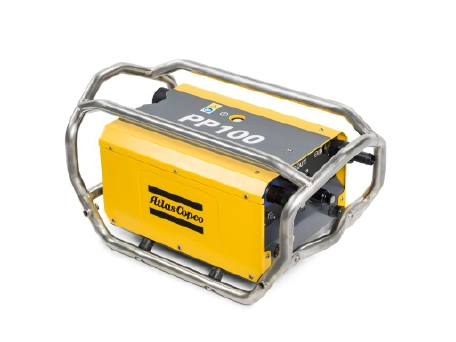

PP100
| Technical Specifications | |
|---|---|
| Size: W x L x H | 380 x 695 x 353 mm |
| Ambient temperature | 5 - 40 ºC |
| Ambient humidity | 10 - 95 % |
| Weight incl. oil | 45 kg |
| Oil flow | 38 l/m |
| Hydraulic oil temperature | 20 - 55 ºC |
| Nominal pressure | 120 bar |
| Pump type | Helical rotor pump, directly driven from the motor shaft |
| Oil tank capacity | 85 l |
| Filtration | 10µ filter in return line. Filter by-pass valve |
| Cooling system | Water |
| Motor type | Inverter controlled 3 phase PM motor |
| Input power | 10 kW |
| Power supply | 525V ± 10%, 50Hz, 12A |
| Socket | 5 pole, 3P, pilot +E |
| Electrical safety | Earth supervision, earth in cable screen, installed with a residual current device |
| IP class | IP66 |
| Part number | 8311030420 |
| Noise declaration statement | |
| Sound pressure EN ISO 11023 | 79 dB(A) |
| Sound power ISO 3744 | 90 dB(A) |
| Suitable for rock drill | |
| Hydraulic rock drill | RD100 |
| Suitable pusher leg | |
| Water powered pusher legs | PL70, PL100, PL120, PL150 |
Za više informacija posetite sajt proizvođača
