Atlas Copco > Proizvodi > Dynapac > Glodalice za asfalt
DYNAPAC - Glodalice za asfalt

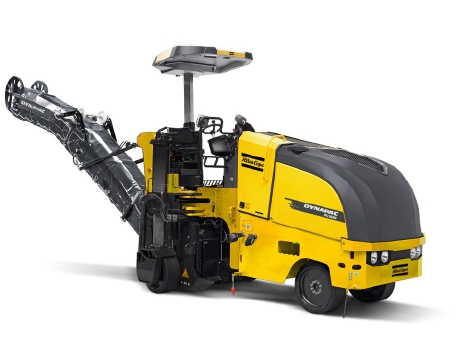

Dynapac PL 1000
| Technical Specifications | |
|---|---|
| Model type | Compact |
| Drum drive | Belt driven drum |
| Transport mass | 12400 kg |
| Operating mass | 13100 kg |
| Max. operating mass | 15000 kg |
| Max cutting width | 1000 mm |
| Max cutting depth | 300 mm |
| Max working Speed | 0 - 30 m |
| Max transportSpeed | 0 - 6 km/h |
| Number of bits | 93 |
| Engine | |
| Engine brand / model | Deutz TCD2012 L06 |
| Power rating | 150 kW (201 hp) at 2200 rpm |
| Hydraulic system | |
| Milling | Belt driven |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever |
| Parking/ Emergency brake | Failsafe multidisc brake in planetary gears |
| Capacities | |
| Fuel tank capacity | 450 l |
| Hydraulic tank | 110 l |
| Water tank capacity | 1100 l |
Za više informacija posetite sajt proizvođača

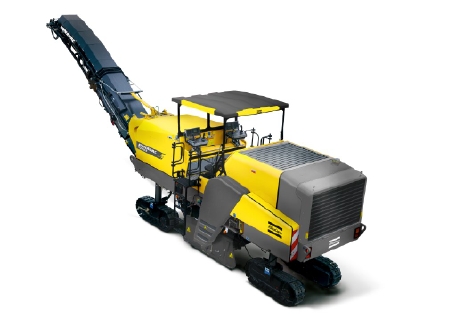

Dynapac PL 2000
| Technical Specifications | |
|---|---|
| Model type | High capacity |
| Drum drive | Belt driven drum |
| Transport mass | 31000 kg |
| Operating mass | 33500 kg |
| Max. operating mass | 36200 kg |
| Max cutting width | 2010 mm |
| Max cutting depth | 320 mm |
| Max working Speed | 0 - 40 m |
| Max transportSpeed | 0 - 5 km/h |
| Number of bits | 162 |
| Engine | |
| Engine brand / model | Cummins QSX 15 |
| Power rating | 447 kW (600 hp) at 2100 rpm |
| Hydraulic system | |
| Milling | Belt driven |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever |
| Parking/ Emergency brake | Failsafe multidisc brake in planetary gears |
| Capacities | |
| Fuel tank capacity | 1100 l |
| Hydraulic tank | 270 l |
| Water tank capacity | 3700 l |
Za više informacija posetite sajt proizvođača

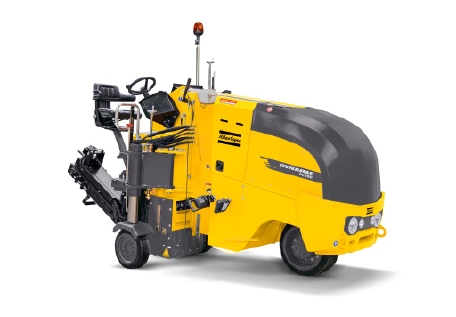

Dynapac PL 350
| Technical Specifications | |
|---|---|
| Model type | Compact |
| Drum drive | Hydraulic driven drum |
| Transport mass | 4120 kg |
| Operating mass | 4450 kg |
| Max. operating mass | 4600 kg |
| Max cutting width | 350 mm |
| Max cutting depth | 100 mm |
| Max working Speed | 0 - 25 m |
| Max transportSpeed | 0 - 6 km/h |
| Number of bits | 38 |
| Engine | |
| Engine brand / model | Cummins B3.3 - C60 |
| Power rating | 45 kW (60 hp) at 2200 rpm |
| Hydraulic system | |
| Milling | Hydrostatic |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever |
| Parking/ Emergency brake | Failsafe multidisc brake in planetary gears |
| Capacities | |
| Fuel tank capacity | 125 l |
| Hydraulic tank | 110 l |
| Water tank capacity | 400 l |
Za više informacija posetite sajt proizvođača

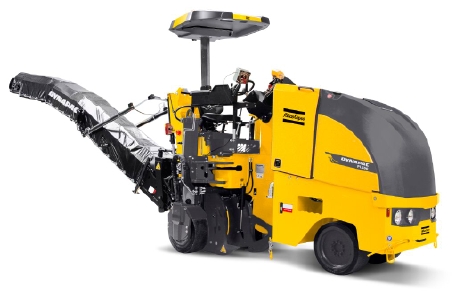

Dynapac PL 500
| Technical Specifications | |
|---|---|
| Model type | Compact |
| Drum drive | Belt driven drum |
| Transport mass | 7200 kg |
| Operating mass | 7800 kg |
| Max. operating mass | 8200 kg |
| Max cutting width | 500 mm |
| Max cutting depth | 200 mm |
| Max working Speed | 0 - 24 m |
| Max transportSpeed | 0 - 5 km/h |
| Number of bits | 61 |
| Engine | |
| Engine brand / model | Cummins QSB 4.5 - C130 |
| Power rating | 97 kW (130 hp) at 2200 rpm |
| Hydraulic system | |
| Milling | Belt driven |
| Steering | Hydrostatic |
| Service brake | Hydrostatic in forward and reverse lever |
| Parking/ Emergency brake | Failsafe multidisc brake in planetary gears |
| Capacities | |
| Fuel tank capacity | 250 l |
| Hydraulic tank | 140 l |
| Water tank capacity | 500 l |
Za više informacija posetite sajt proizvođača
