Hidraulični čekići - HB – Teška serija

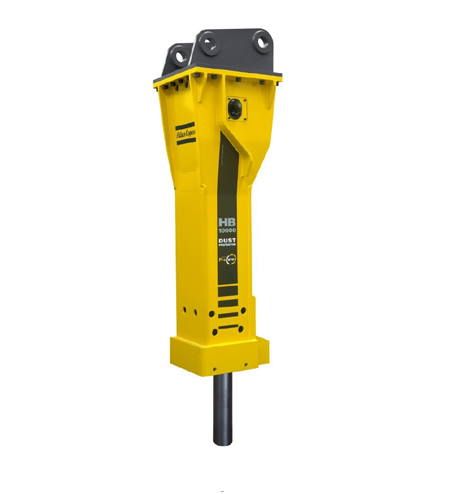

HB 10000 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 85 - 140 t |
| Service weight ** | 10000 kg |
| Oil flow | 450 - 530 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 250 - 380 blows/min |
| Working tool diameter | 240 mm |
| Working length of tool | 880 mm |
| Max. hydraulic input power | 159 kW |
| Sound power level guaranteed | 123 dB(A) |
| Sound pressure level (r=10m) *** | 93 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

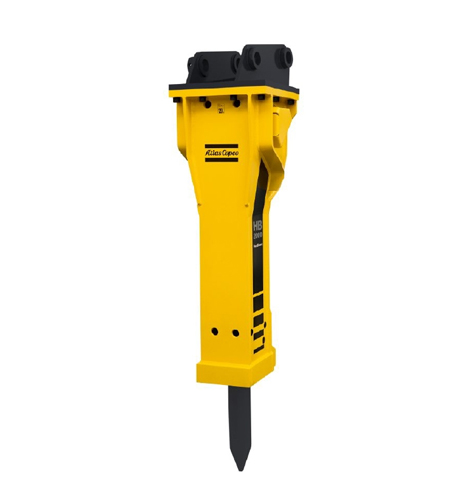

HB 2000
| Technical Specifications | |
|---|---|
| Carrier weight class | 22 - 38 t |
| Service weight ** | 2000 kg |
| Oil flow | 150 - 190 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 300 - 625 blows/min |
| Working tool diameter | 145 mm |
| Working length of tool | 665 mm |
| Max. hydraulic input power | 57 kW |
| Sound power level guaranteed | 120 dB(A) |
| Sound pressure level (r=10m) *** | 91 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

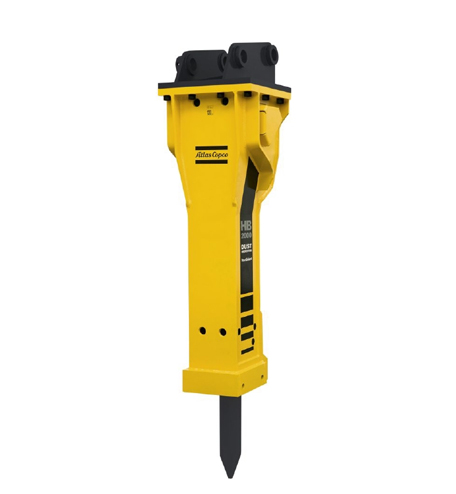

HB 2000 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 40 - 70 t |
| Service weight ** | 4100 kg |
| Oil flow | 250 - 320 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 550 blows/min |
| Working tool diameter | 180 mm |
| Working length of tool | 820 mm |
| Max. hydraulic input power | 96 kW |
| Sound power level guaranteed | 123 dB(A) |
| Sound pressure level (r=10m) *** | 93 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača
HB 2500
| Technical Specifications | |
|---|---|
| Carrier weight class | 27 - 46 t |
| Service weight ** | 2500 kg |
| Oil flow | 170 - 220 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 580 blows/min |
| Working tool diameter | 155 mm |
| Working length of tool | 680 mm |
| Max. hydraulic input power | 66 kW |
| Sound power level guaranteed | 121 dB(A) |
| Sound pressure level (r=10m) *** | 91 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

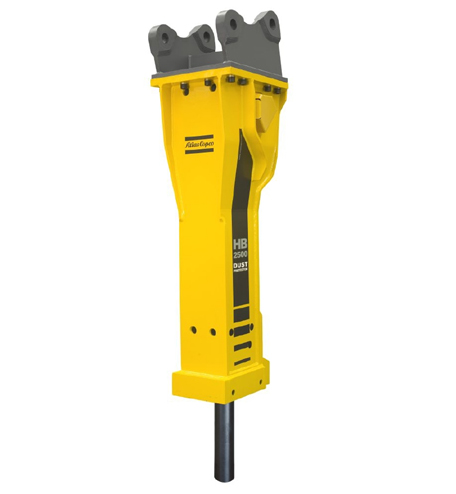

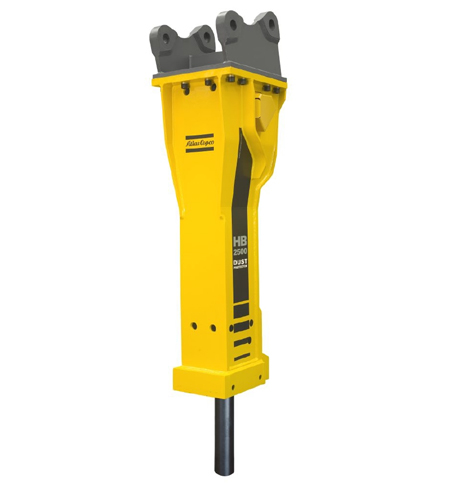

HB 2500 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 27 - 46 t |
| Service weight ** | 2500 kg |
| Oil flow | 170 - 220 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 580 blows/min |
| Working tool diameter | 155 mm |
| Working length of tool | 640 mm |
| Max. hydraulic input power | 66 kW |
| Sound power level guaranteed | 121 dB(A) |
| Sound pressure level (r=10m) *** | 92 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

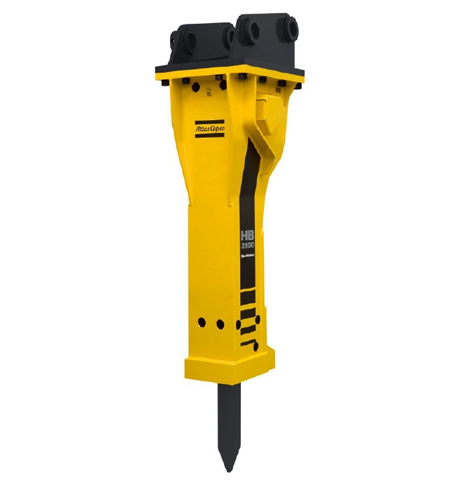

HB 3100
| Technical Specifications | |
|---|---|
| Carrier weight class | 32 - 52 t |
| Service weight ** | 3100 kg |
| Oil flow | 210 - 270 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 560 blows/min |
| Working tool diameter | 165 mm |
| Working length of tool | 745 mm |
| Max. hydraulic input power | 81 kW |
| Sound power level guaranteed | 119 dB(A) |
| Sound pressure level (r=10m) *** | 90 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

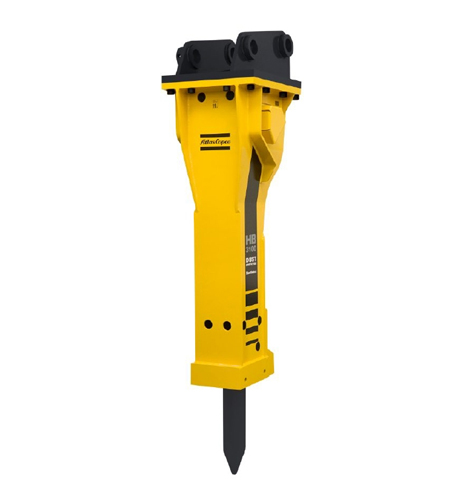

HB 3100 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 32 - 52 t |
| Service weight ** | 3100 kg |
| Oil flow | 210 - 270 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 560 blows/min |
| Working tool diameter | 165 mm |
| Working length of tool | 700 mm |
| Max. hydraulic input power | 81 kW |
| Sound power level guaranteed | 119 dB(A) |
| Sound pressure level (r=10m) *** | 90 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

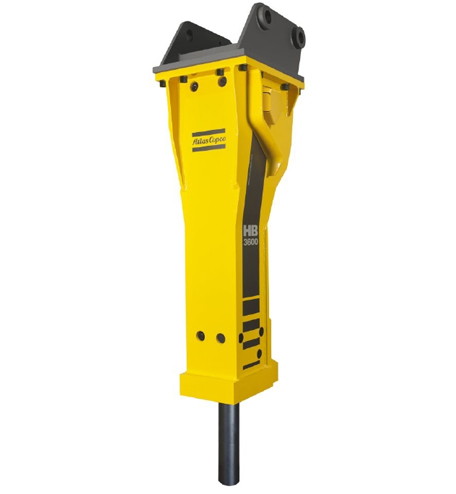

HB 3600
| Technical Specifications | |
|---|---|
| Carrier weight class | 35 - 63 t |
| Service weight ** | 3600 kg |
| Oil flow | 240 - 300 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 560 blows/min |
| Working tool diameter | 170 mm |
| Working length of tool | 770 mm |
| Max. hydraulic input power | 90 kW |
| Sound power level guaranteed | 121 dB(A) |
| Sound pressure level (r=10m) *** | 92 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača
HB 3600 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 35 - 63 t |
| Service weight ** | 3600 kg |
| Oil flow | 240 - 300 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 560 blows/min |
| Working tool diameter | 170 mm |
| Working length of tool | 720 mm |
| Max. hydraulic input power | 90 kW |
| Sound power level guaranteed | 121 dB(A) |
| Sound pressure level (r=10m) *** | 92 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača
HB 4100
| Technical Specifications | |
|---|---|
| Carrier weight class | 40 - 70 t |
| Service weight ** | 4100 kg |
| Oil flow | 250 - 320 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 550 blows/min |
| Working tool diameter | 180 mm |
| Working length of tool | 820 mm |
| Max. hydraulic input power | 96 kW |
| Sound power level guaranteed | 123 dB(A) |
| Sound pressure level (r=10m) *** | 93 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

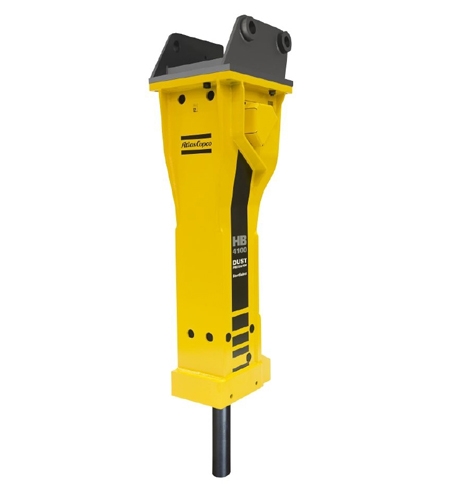

HB 4100 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 40 - 70 t |
| Service weight ** | 4100 kg |
| Oil flow | 250 - 320 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 550 blows/min |
| Working tool diameter | 180 mm |
| Working length of tool | 775 mm |
| Max. hydraulic input power | 96 kW |
| Sound power level guaranteed | 123 dB(A) |
| Sound pressure level (r=10m) *** | 93 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

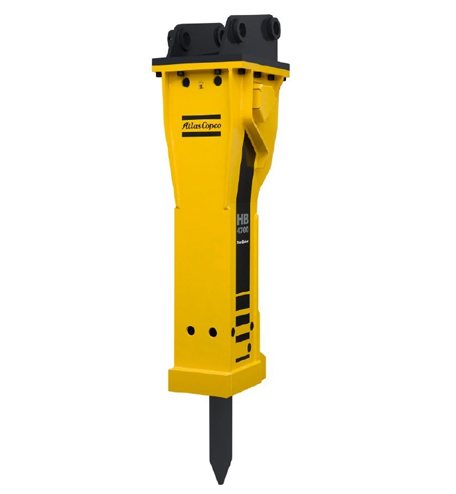

HB 4700
| Technical Specifications | |
|---|---|
| Carrier weight class | 45 - 80 t |
| Service weight ** | 4700 kg |
| Oil flow | 260 - 360 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 540 blows/min |
| Working tool diameter | 190 mm |
| Working length of tool | 860 mm |
| Max. hydraulic input power | 108 kW |
| Sound power level guaranteed | 126 dB(A) |
| Sound pressure level (r=10m) *** | 96 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača
HB 4700 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 45 - 80 t |
| Service weight ** | 4700 kg |
| Oil flow | 260 - 360 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 540 blows/min |
| Working tool diameter | 190 mm |
| Working length of tool | 800 mm |
| Max. hydraulic input power | 108 kW |
| Sound power level guaranteed | 126 dB(A) |
| Sound pressure level (r=10m) *** | 96 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača
HB 5800
| Technical Specifications | |
|---|---|
| Carrier weight class | 58 - 100 t |
| Service weight ** | 5800 kg |
| Oil flow | 310 - 390 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 480 blows/min |
| Working tool diameter | 200 mm |
| Working length of tool | 865 mm |
| Max. hydraulic input power | 117 kW |
| Sound power level guaranteed | 121 dB(A) |
| Sound pressure level (r=10m) *** | 92 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

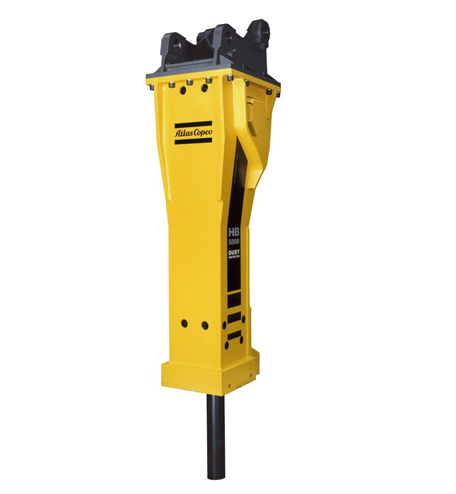

HB 5800 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 58 - 100 t |
| Service weight ** | 5800 kg |
| Oil flow | 310 - 390 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 480 blows/min |
| Working tool diameter | 200 mm |
| Working length of tool | 810 mm |
| Max. hydraulic input power | 117 kW |
| Sound power level guaranteed | 121 dB(A) |
| Sound pressure level (r=10m) *** | 92 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača

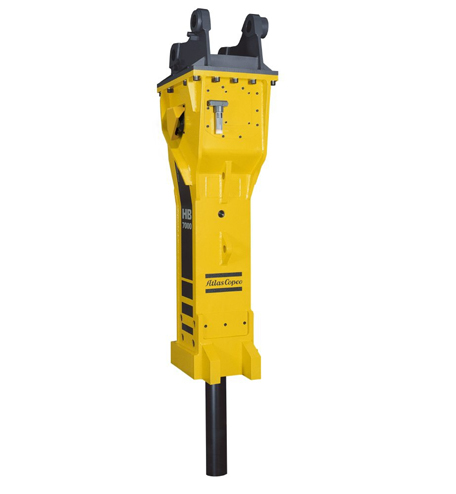

HB 7000
| Technical Specifications | |
|---|---|
| Carrier weight class | 70 - 120 t |
| Service weight ** | 7000 kg |
| Oil flow | 360 - 450 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 450 blows/min |
| Working tool diameter | 210 mm |
| Working length of tool | 935 mm |
| Max. hydraulic input power | 135 kW |
| Sound power level guaranteed | 121 dB(A) |
| Sound pressure level (r=10m) *** | 92 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača
HB 7000 DP
| Technical Specifications | |
|---|---|
| Carrier weight class | 70 - 120 t |
| Service weight ** | 7000 kg |
| Oil flow | 360 - 450 l/min |
| Operating pressure | 160 - 180 bar |
| Impact rate | 280 - 450 blows/min |
| Working tool diameter | 210 mm |
| Working length of tool | 885 mm |
| Max. hydraulic input power | 135 kW |
| Sound power level guaranteed | 121 dB(A) |
| Sound pressure level (r=10m) *** | 92 dB(A) |
HB Hidraulični čekići katalog (PDF)
Za više informacija posetite sajt proizvođača
