DYNAPAC - Finišeri

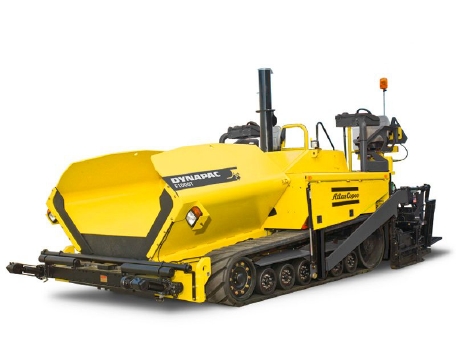

Dynapac F1000T

Technical Specifications
Traction system Tracked
Min. paving width 3.05 m
Basic paving width 3.05 m
Max. paving width 7.62 m
Masses
Weight 17235 kg
Material hopper
Capacity 5,9 m³
Dumping height, center 686 mm
Dumping height, outside 686 mm
Hopper width, internal 3226 mm
Traction
Paving speed 0 - 32 m/min
Transport speed 16 km/h
Front ramp angle 14.75°
Conveyor
Conveyor type Dual bar feeder
Conveyor width, dual (mm) 2 x 685
Conveyor control Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors.
Auger
Auger diameter 406 mm
Auger control Dual independent proportional augers
Auger height adjustment (mm) Infinitely variable by 250 mm
Engine
Engine brand / model Cummins QSB 6.7, T3
Power rating 169 kW (230 hp) at 1800 rpm
Capacities
Placement thickness, max. 305 mm
Theoretical placement capacity 600 t/h
Practical placement capacity 900 m³
Fuel tank capacity 370 l
Paving speed 0 m/min
Za više informacija posetite sajt proizvođača

Dynapac F1000W (T4)

Technical Specifications
Traction system Wheeled
Min. paving width 3.05 m
Basic paving width 3.05 m
Max. paving width 7.93 m
Masses
Weight 15150 kg
Material hopper
Capacity 6,7 m³ (15,0 t)
Dumping height, center 686 mm
Dumping height, outside 686 mm
Hopper width, internal 3226 mm
Traction
Paving speed 0 - 39 m/min
Transport speed 19 km/h
Tyre size 457-R25
Front wheels 102x406x560
Wheel drive 2 front and 2 rear wheel
Turning radius 1524 mm
Front ramp angle 14.75°
Conveyor
Conveyor type Dual bar feeder
Conveyor width, dual (mm) 2 x 685
Conveyor control Two independent conveyor half's with infinitely variable speed. Both half's can be controlled separately. Conveyor control independent of Augers by Ultrasonic sensors.
Auger
Auger diameter 406 mm
Auger control Outboard drive. Two reversible augers with proportional speed control. Left and right augers to be controlled separately by Ultrasonic sensors.
Auger height adjustment (mm) Infinitely variable by 250 mm
Engine
Engine brand / model Cummins QSB 6.7 C220, T4i
Power rating 162 kW (220 hp) at 2000 rpm
Capacities
Placement thickness, max. 305 mm
Theoretical placement capacity 1600 t/h
Practical placement capacity 900 m³
Fuel tank capacity 370 l
Paving speed 0 m/min
Za više informacija posetite sajt proizvođača

Dynapac F1700C

Technical Specifications
Traction system Tracked
Min. paving width 0.7 m
Basic paving width 1.7 m
Max. paving width 4.4 m
Masses
Weight 8800 kg
Material hopper
Capacity 4,7 m³ (10,1 t)
Dumping height 600 mm
Hopper width, internal 3020 mm
Traction
Paving speed 0 - 32 m/min
Transport speed 3.8 km/h
Front ramp angle 17.5
Conveyor
Conveyor type Dual bar feeder
Conveyor width, dual (mm) 2 x 350
Conveyor control Automatic with limit switches
Auger
Auger diameter 350 mm
Auger control Automatic with ultrasonic sensors
Auger height adjustment (mm) Infinitely variable by 200 mm
Engine
Engine brand / model Deutz TD2011 L04
Power rating 52 kW (71 hp) at 2300 rpm
Capacities
Placement thickness, max. 270 mm
Theoretical placement capacity 350 t/h
Fuel tank capacity 98 l
Za više informacija posetite sajt proizvođača

Dynapac SD2500C

Technical Specifications
Traction system Tracked
Min. paving width 2 m
Basic paving width 2.55 m
Max. paving width 9 m
Masses
Weight 20000 kg
Material hopper
Capacity 7,0 m³ (15,0 t)
Dumping height, center 575 mm
Dumping height, outside 575 mm
Hopper width, internal 3292 mm
Traction
Paving speed 0 - 28 m/min
Transport speed 4 km/h
Front ramp angle 16°
Conveyor
Conveyor type Dual bar feeder
Conveyor width, dual (mm) 2 x 655
Conveyor control Automatic with limit switches
Auger
Auger diameter 500 mm
Auger control Automatic with ultrasonic sensors
Auger height adjustment (mm) Hydraulically adjustable by 250 mm
Engine
Engine brand / model Cummins QSB 6.7 C260
Power rating 194 kW (264 hp) at 2200 rpm
Capacities
Placement thickness, max. 350 mm
Theoretical placement capacity 1100 t/h
Fuel tank capacity 350 l
Paving speed 0 m/min
Za više informacija posetite sajt proizvođača

Dynapac SD2500W

Technical Specifications
Traction system Wheeled
Min. paving width 2 m
Basic paving width 2.55 m
Max. paving width 7.3 m
Masses
Weight 18000 kg
Material hopper
Capacity 6,0 m³ (12,0 t)
Dumping height, center 587 mm
Dumping height, outside 587 mm
Hopper width, internal 3142 mm
Traction
Paving speed 0 - 30 m/min
Transport speed 20 km/h
Tyre size 445/80-R25
Front wheels 4x560/300-390
Wheel drive 2 front and 2 rear wheel
Turning radius 2477 mm
Conveyor
Conveyor type Dual bar feeder
Conveyor width, dual (mm) 2 x 655
Conveyor control Automatic with limit switches
Auger
Auger diameter 380 mm
Auger control Automatic with ultrasonic sensors
Auger height adjustment (mm) Hydraulically adjustable by 250 mm
Engine
Engine brand / model Cummins QSB 6.7 C173
Power rating 129 kW (175 hp) at 2200 rpm
Capacities
Placement thickness, max. 300 mm
Theoretical placement capacity 600 t/h
Fuel tank capacity 315 l
Paving speed 0 m/min
Za više informacija posetite sajt proizvođača

Dynapac SD2550C

Technical Specifications
Traction system Tracked
Min. paving width 2 m
Basic paving width 2.55 m
Max. paving width 12 m
Masses
Weight 20000 kg
Material hopper
Capacity 7,0 m³ (15,0 t)
Dumping height, center 530 mm
Dumping height, outside 530 mm
Hopper width, internal 3292 mm
Traction
Paving speed 0 - 28 m/min
Transport speed 4 km/h
Front ramp angle 13.5°
Conveyor
Conveyor type Dual bar feeder
Conveyor width, dual (mm) 2 x 655
Conveyor control Automatic with limit switches
Auger
Auger diameter 430 mm
Auger control Automatic with ultrasonic sensors
Auger height adjustment (mm) Hydraulically adjustable by 250 mm
Engine
Engine brand / model Cummins QSB 6.7 C260
Power rating 170 kW (231 hp) at 2200 rpm
Capacities
Placement thickness, max. 350 mm
Theoretical placement capacity 900 t/h
Fuel tank capacity 350 l
Paving speed 0 m/min
